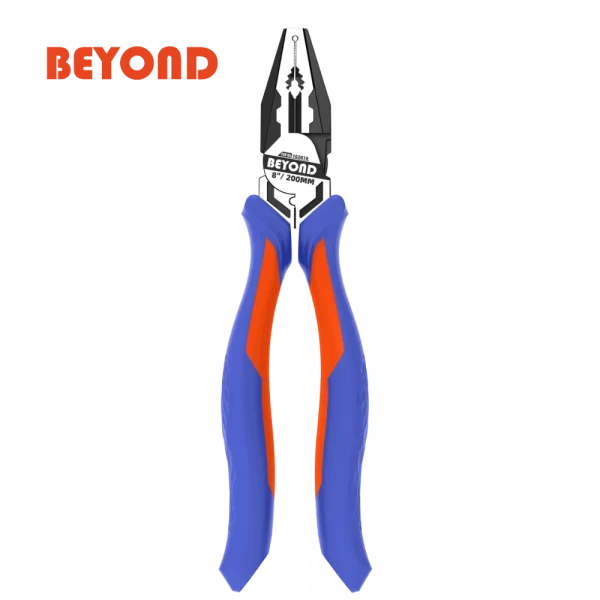

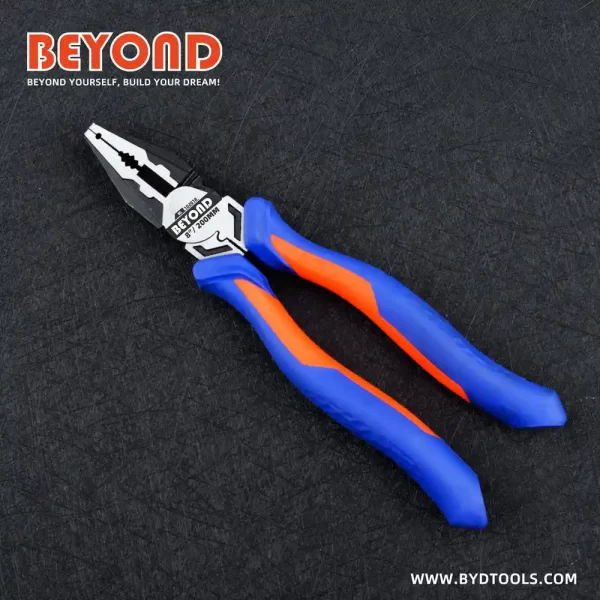

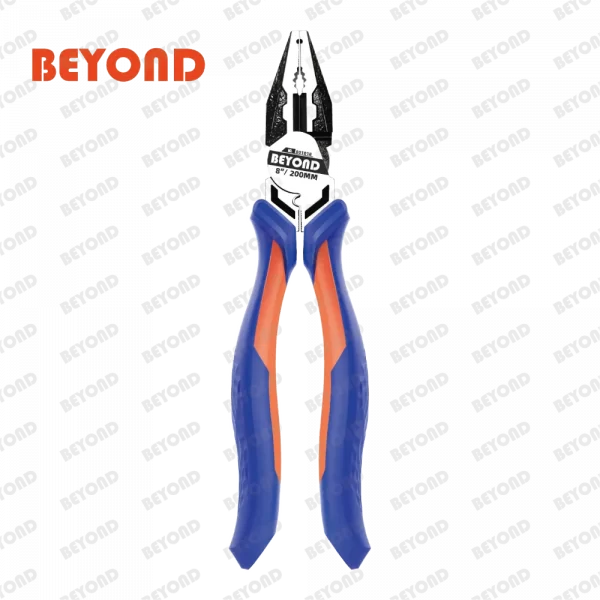

Heavy Duty Combination Plier Tool 8 Inch With Low MOQ
• Labor saving eccentric lever design
• High leverage saving 30% strength than normal pliers
• Materials: 60 CRV Drop Forged Steel
• Hardness of cutting edge: 62±2 HRC
• Surface: Blackening + Machine Grinding
• Handle: PVC

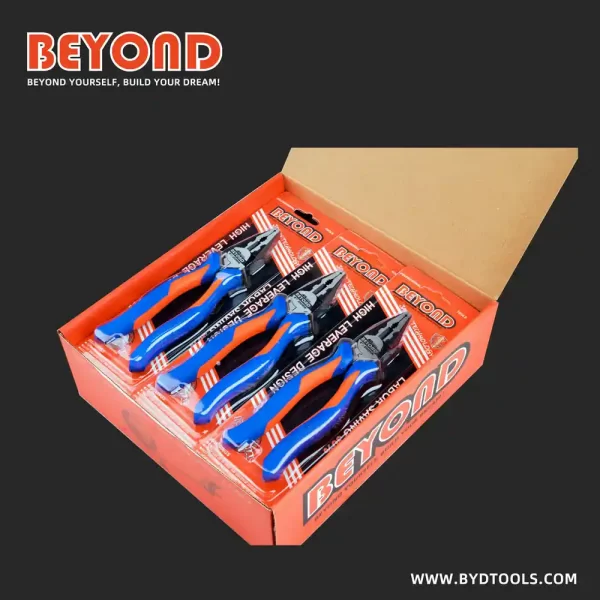

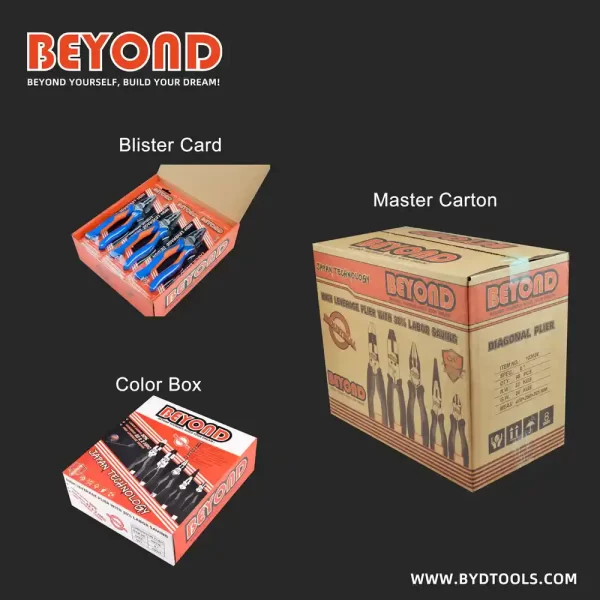

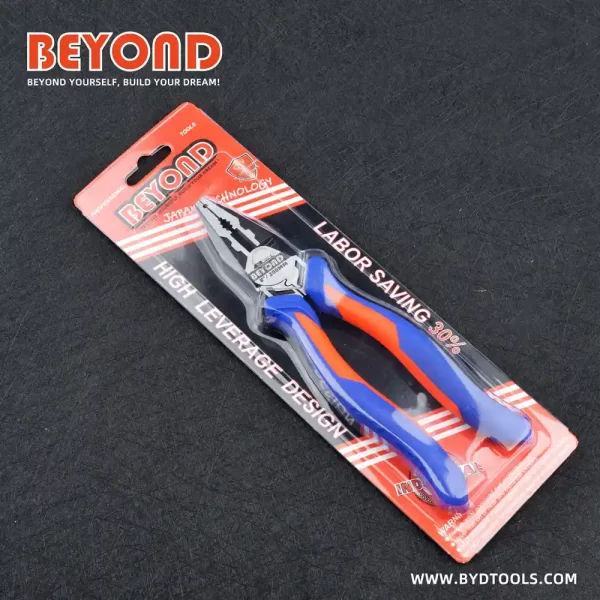

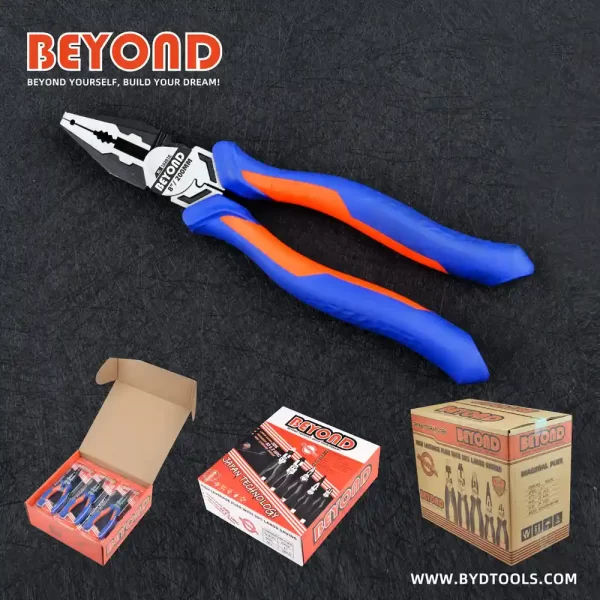

• Package:Blister Card + Color Box + Mater Carton
DETAILED SPECIFICATIONS AND PACKING INFORMATIONS
| SERIES | ITEM NO. | SPEC INCH |
CUTTING ABILITY | DETAIL PACKAGE / CTN | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| copper wire Φ(mm) |
iron wire Φ(mm) |
steel wire rope Φ(mm) |
piano wire Φ(mm) |
QTY/BOX (PCS) |
QTY/CTN (PCS) |
G.W./CTN (KGS) |
VOL/CTN (CBMS) |
MEAS/CTN (MM) |
|||
| 102 SERIES |
102107 | 7″ | ≤Φ4.0 | ≤Φ2.8 | ≤Φ2.5 | ≤Φ2.0 | 12 | 72 | 22.5 | 0.053 | 555*305*310 |
| 102018 | 8″ | ≤Φ5.0 | ≤Φ3.3 | ≤Φ2.8 | ≤Φ2.3 | 12 | 72 | 29.0 | 0.053 | 555*305*310 | |
| 102019 | 9″ | ≤Φ6.0 | ≤Φ3.8 | ≤Φ3.0 | ≤Φ2.5 | 12 | 72 | 32.0 | 0.053 | 555*305*310 | |
• Milled groove in the gripping area permits small parts such as nails,pins and bolts to be held and pulled
• Gripping zones for flat and round material for a variety of uses
• Oval jaw:for clamping screw nuts,pipe and other round workpieces
• Cutting steel wire,copper wire,plastic and so on. Special lasering heat treatment for cutting edge to ensure more
shapper and longer working life
• Labor saving eccentric lever design
High leverage saving 30% strength than normal pliers
• Clamping wire, gap: ≤1.5mm,easy for wire pulling & clamping
7″:0.75~4mm², 8″:0.75~4mm², 9″:0.75~4mm²
• PVC handle with ergonomic handle design,non-sliping,firm contact to the hand and fatigue reducing operation
